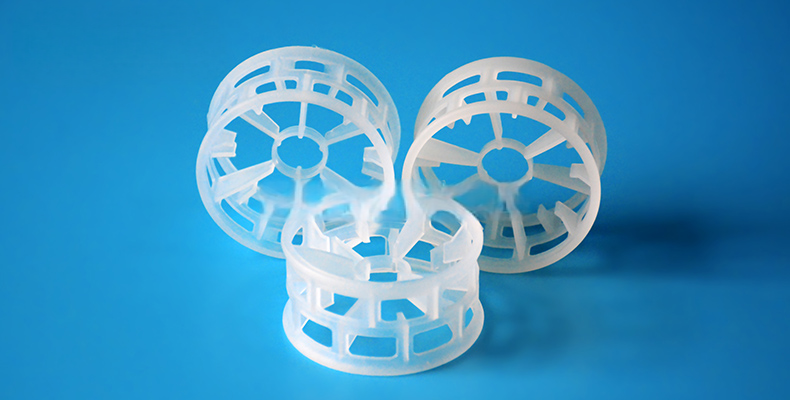

Beta ring TDS

Technical Parameter

name		Plastic beta rings
material		PP,PE,PVC,CPVC,RPP, PVDF and etc.
service life		>3 years
name	diameter	Void	Packing
	mm	%	Kg/m3
Beta ring	25	94	53kg/m3（3.3lb/ft3）
Beta ring	50	94	54kg/m3（3.4lb/ft3）
Beta ring	76	96	38kg/m3（2.4lb/ft3）
perfo rmance	1. The open-hole structure and some vertical and vertical axes inhibit the pollution caused by liquid washing more easily on the solid flowing through the packed bed, enabling the free flow of gas
	2. The pressure drop is smaller than that of the pall ring and the rectangular saddle ring
advan tages	Open pore structure and some vertical longitudinal axis inhibited the flow through packed bed of solids is more likely to be fluid scouring caused pollution. Higher liquid handling capacity, high gas volume and low pressure drop, the low aspect ratio increased operating ability reduced the pressure drop, low pressure drop to improve the separation effect with high efficiency, reduce the height of the installed in a new tower.
	Strong corrosion resistance, large void, energy saving and environmental protection, low cost, light specific gravity easy loading and unloading.
field	Plastic bulk packing with a temperature of 280 degrees Celsius, widely used in petroleum, chemical, chlor-alkali, gas, environmental protection and other industries in the packed tower.

Physical and Chemical Properties
