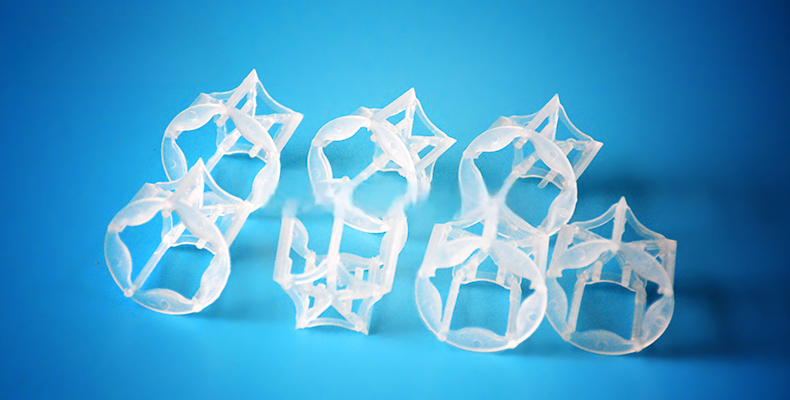

Five corner ring TDS
Technical Parameter
name | Five corner ring | ||||
material | PP,PE,PVC,CPVC,PVDF ,etc | ||||
service life | >3 years | ||||
size | aream2/m3 | Void | number/ m3 | Kg/m3 | packing |
mm | % | m-1 | |||
38*12*1.2 | 246 | 95 | 46000 | 112 | 260.3 |
50*17*1.5 | 218 | 97 | 21500 | 107 | 225.2 |
76*26*2.5 | 198 | 96 | 6500 | 92 | 207.1 |
perfo rmance | High voidage, low pressure, low height of mass transfer unit, high flooding point, sufficient gas-liquid contact, small specific gravity, high mass transfer efficiency | ||||
merit | 1. The special structure makes it have large circulation, low pressure and good mechanical strength. | ||||
2. Strong corrosion resistance, large void ratio, energy saving and environmental protection, low cost, light specific gravity easy loading and unloading. | |||||
Application | Plastic bulk packing with a temperature of 280 degrees Celsius, widely used in petroleum, chemical, chlor-alkali, gas, environmental protection and other industries in the packed tower. | ||||
Physical and Chemical Properties
Properties materials | PE | PP | RPP | PVC | CPVC | PVDF |
Density | 0.98 | 0.96 | 1.2 | 1.7 | 1.8 | 1.8 |
Operating | 90 | ＞100 | ＞120 | ＞60 | ＞90 | ＞150 |
Corrosion | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
strength | ＞6.0 | ＞6.0 | ＞6.0 | ＞6.0 | ＞6.0 | ＞6.0 |
